Thông số kỹ thuật Omron CJ1W-OC211

đại lý CJ1W-OC211 | mô đun output CJ1W-OC211 | nhà phân phối CJ1W-OC211

CJ1W-OC201 Contact Output Unit (Independent Relays, 8 Points)

Name 8-point Contact Output Unit with Terminal Block (Independent Relays)
Model Omron CJ1W-OC201
Max. Switching Capacity 2 A 250 VAC (cosφ = 1), 2 A 250 VAC (cosφ = 0.4), 2 A 24 VDC (16 A/Unit)
Min. Switching Capacity 1 mA 5 VDC
Relays NY-24W-K-IE (Fujitsu Takamizawa Components, Ltd.), Cannot be replaced.
Service Life of Relay Electrical: 150,000 operations (24 VDC, resistive load)/100,000 operations (240 VAC, cosφ
= 0.4, inductive load)
Mechanical: 20,000,000 operations
Service life will vary depending on the connected load.
ON Response Time 15 ms max.
OFF Response Time 15 ms max.
Number of Circuits 8 independent contacts
Insulation Resistance 20 MΩ between external terminals and the GR terminal (500 VDC)
Dielectric Strength 2,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage
current of 10 mA max.
Internal Current
Consumption		 90 mA 5 VDC max.
48 mA 24 VDC max. (6 mA × No. of ON points)
Weight 140 g max.
Circuit Configuration

The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
External connection and
terminal-device variable
diagram

The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
The input power supply polarity can be connected in either direction.
* Terminal numbers A0 to A8 and B0 to B8 are used in the external connection and terminal-device variable diagrams.
They are not printed on the Units.
Note: Although 16 I/O bits (1 word) are allocated, only 8 of these can be used for external I/O.

CJ1W-OC211 Contact Output Unit (16 Points)

Name 16-point Contact Output Unit with Terminal Block
Model Omron CJ1W-OC211
Max. Switching Capacity 2 A 250 VAC (cosφ = 1), 2 A 250 VAC (cosφ = 0.4), 2 A 24 VDC (8 A/Unit)
Min. Switching Capacity 1 mA 5 VDC
Relays NY-24W-K-IE (Fujitsu Takamizawa Components, Ltd.), Cannot be replaced.
Service Life of Relay Electrical: 150,000 operations (24 VDC, resistive load)/ 100,000 operations (250 VAC,
cosφ = 0.4, inductive load)
Mechanical: 20,000,000 operations
Service life will vary depending on the connected load.
ON Response Time 15 ms max.
OFF Response Time 15 ms max.
Number of Circuits 16 points/common, 1 circuit
Insulation Resistance 20 MΩ between external terminals and the GR terminal (500 VDC)
Dielectric Strength 2,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage
current of 10 mA max.
Internal Current
Consumption		 110 mA 5 VDC max.
96 mA 24 VDC max. (6 mA × No. of ON points)
Weight 170 g max.
Circuit Configuration
2055_sp_2_1

The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.

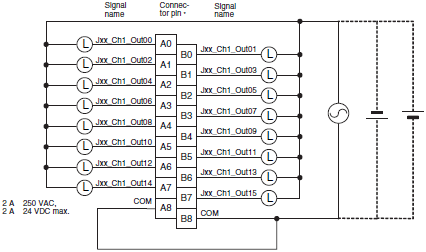

External connection and
terminal-device variable
diagram
2055_sp_2_2

The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
* Terminal numbers A0 to A8 and B0 to B8 are used in the external connection and terminal-device variable diagrams.
They are not printed on the Units.

CJ1W-OA201 Triac Output Unit (8 Points)

Name 8-point Triac Output Unit with Terminal Block
Model Omron CJ1W-OA201
Max. Switching Capacity 0.6 A 250 VAC, 50/60 Hz (2.4 A/Unit)
Max. Inrush Current 15 A (pulse width: 10 ms max.)
Min. Switching Capacity 50 mA 75 VAC
Leakage Current 1.5 mA (200 VAC) max.
Residual Voltage 1.6 VAC max.
ON Response Time 1 ms max.
OFF Response Time 1/2 of load frequency + 1 ms or less.
Number of Circuits 8 (8 points/common, 1 circuit)
Surge Protector C.R Absorber + Surge Absorber
Fuses 5 A (1/common, 1 used)
The fuse cannot be replaced by the user.
Insulation Resistance 20 MΩ between the external terminals and the GR terminal (500 VDC)
Dielectric Strength 2,000 VAC between the external terminals and the GR terminal for 1 minute at a
leakage current of 10 mA max.
Internal Current Consumption 220 mA max.
Weight 150 g max.
Circuit Configuration

The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
External connection and
terminal-device variable
diagram

The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
* Terminal numbers A0 to A8 and B0 to B8 are used in the external connection and terminal-device variable diagrams.
They are not printed on the Units.
Note: Although 16 I/O bits (1 word) are allocated, only 8 of these can be used for external I/O.

CJ1W-OD201 Transistor Output Unit (8 Points)

Name 8-point Transistor Output Unit with Terminal Block (Sinking Outputs)
Model Omron CJ1W-OD201
Rated Voltage 12 to 24 VDC
Operating Load Voltage Range 10.2 to 26.4 VDC
Maximum Load Current 2.0 A/point, 8.0 A/Unit
Maximum Inrush Current 10 A/point, 10 ms max.
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 0.5 ms max.
OFF Response Time 1.0 ms max.
Insulation Resistance 20 MΩ between the external terminals and the GR terminal (100 VDC)
Dielectric Strength 1,000 VAC between the external terminals and the GR terminal for 1 minute at a
leakage current of 10 mA max.
Number of Circuits 8 (4 points/common, 2 circuits)
Internal Current Consumption 90 mA max.
Fuse 6.3 A (1/common, 2 used)
The fuse cannot be replaced by the user.
External Power Supply 10.2 to 26.4 VDC, 10 mA min.
Weight 110 g max.
Circuit Configuration

The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
External connection and
terminal-device variable
diagram

When wiring, pay careful attention to the polarity of the external power supply. The
load may operate incorrectly if the polarity is reversed.
The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
* Terminal numbers A0 to A8 and B0 to B8 are used in the external connection and terminal-device variable diagrams.
They are not printed on the Units.
Note: Although 16 I/O bits (1 word) are allocated, only 8 of these can be used for external I/O.

CJ1W-OD203 Transistor Output Unit (8 Points)

Name 8-point Transistor Output Unit with Terminal Block (Sinking Outputs)
Model Omron CJ1W-OD203
Rated Voltage 12 to 24 VDC
Operating Load Voltage Range 10.2 to 26.4 VDC
Maximum Load Current 0.5 A/point, 4.0 A/Unit
Maximum Inrush Current 4.0 A/point, 10 ms max.
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 0.1 ms max.
OFF Response Time 0.8 ms max.
Insulation Resistance 20 MΩ between the external terminals and the GR terminal (100 VDC)
Dielectric Strength 1,000 VAC between the external terminals and the GR terminal for 1 minute at a
leakage current of 10 mA max.
Number of Circuits 8 (8 points/common, 1 circuit)
Internal Current Consumption 100 mA max.
Fuse None
External Power Supply 10.2 to 26.4 VDC, 20 mA min.
Weight 110 g max.
Circuit Configuration

The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
External connection and
terminal-device variable
diagram

When wiring, pay careful attention to the polarity of the external power supply. The
load may operate incorrectly if the polarity is reversed.
The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
* Terminal numbers A0 to A8 and B0 to B8 are used in the external connection and terminal-device variable diagrams.
They are not printed on the Units.
Note: Although 16 I/O bits (1 word) are allocated, only 8 of these can be used for external I/O.

CJ1W-OD211 Transistor Output Unit (16 Points)

Name 16-point Transistor Output Unit with Terminal Block (Sinking Outputs)
Model Omron CJ1W-OD211
Rated Voltage 12 to 24 VDC
Operating Load Voltage Range 10.2 to 26.4 VDC
Maximum Load Current 0.5 A/point, 5.0 A/Unit
Maximum Inrush Current 4.0 A/point, 10 ms max.
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 0.1 ms max.
OFF Response Time 0.8 ms max.
Insulation Resistance 20 MΩ between the external terminals and the GR terminal (100 VDC)
Dielectric Strength 1,000 VAC between the external terminals and the GR terminal for 1 minute at a
leakage current of 10 mA max.
Number of Circuits 16 (16 points/common, 1 circuit)
Internal Current Consumption 5 VDC 100 mA max.
Fuse None
External Power Supply 10.2 to 26.4 VDC, 20 mA min.
Weight 110 g max.
Circuit Configuration

The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
External connection and
terminal-device variable
diagram

When wiring, pay careful attention to the polarity of the external power supply. The
load may operate incorrectly if the polarity is reversed.
The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
* Terminal numbers A0 to A8 and B0 to B8 are used in the external connection and terminal-device variable diagrams.
They are not printed on the Units.

CJ1W-OD213 Transistor Output Unit (16 Points)

Name 16-point Transistor Output Unit with Terminal Block (Sinking Outputs)
Model Omron CJ1W-OD213
Rated Voltage 24 VDC
Operating Load Voltage Range 20.4 to 26.4 VDC
Maximum Load Current 0.5 A/point, 5.0 A/Unit
Maximum Inrush Current 4.0 A/point, 10 ms max.
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 15 μs max.
OFF Response Time 80 μs max.
Insulation Resistance 20 MΩ between the external terminals and the GR terminal (100 VDC)
Dielectric Strength 1,000 VAC between the external terminals and the GR terminal for 1 minute at a
leakage current of 10 mA max.
Number of Circuits 16 (16 points/common, 1 circuit)
Internal Current Consumption 5 VDC 150 mA max.
Fuse None
External Power Supply 20.4 to 26.4 VDC, 55 mA min.
Weight 110 g max.
Circuit Configuration

The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
External connection and
terminal-device variable
diagram

When wiring, pay careful attention to the polarity of the external power supply. The
load may operate incorrectly if the polarity is reversed.
The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
* Terminal numbers A0 to A8 and B0 to B8 are used in the external connection and terminal-device variable diagrams.
They are not printed on the Units.

CJ1W-OD231 Transistor Output Unit (32 Points)

Name 32-point Transistor Output Unit with Fujitsu Connector (Sinking Outputs)
Model Omron CJ1W-OD231
Rated Voltage 12 to 24 VDC
Operating Load Voltage Range 10.2 to 26.4 VDC
Maximum Load Current 0.5 A/point, 2.0 A/common, 4.0 A/Unit
Maximum Inrush Current 4.0 A/point, 10 ms max.
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 0.1 ms max.
OFF Response Time 0.8 ms max.
Insulation Resistance 20 MΩ between the external terminals and the GR terminal (100 VDC)
Dielectric Strength 1,000 VAC between the external terminals and the GR terminal for 1 minute at a
leakage current of 10 mA max.
Number of Circuits 32 (16 points/common, 2 circuits)
Internal Current Consumption 5 VDC 140 mA max.
Fuse None
External Power Supply 10.2 to 26.4 VDC, 30 mA min.
Weight 70 g max.
Accessories None
Circuit Configuration

The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
External connection and
terminal-device variable
diagram

When wiring, pay careful attention to the polarity of the external power supply. The
load may operate incorrectly if the polarity is reversed.
Be sure to wire both terminals A9 and A19 (COM0).
Be sure to wire both terminals B9 and B19 (COM1).
Be sure to wire both terminals A10 and A20 (+V).
Be sure to wire both terminals B10 and B20 (+V).
The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.

CJ1W-OD233 Transistor Output Unit (32 Points)

Name 32-point Transistor Output Unit with MIL Connector (Sinking Outputs)
Model Omron CJ1W-OD233
Rated Voltage 12 to 24 VDC
Operating Load Voltage Range 10.2 to 26.4 VDC
Maximum Load Current 0.5 A/point, 2 A/common, 4 A/Unit
Maximum Inrush Current 4.0 A/point, 10 ms max.
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 0.1 ms max.
OFF Response Time 0.8 ms max.
Insulation Resistance 20 MΩ between the external terminals and the GR terminal (100 VDC)
Dielectric Strength 1,000 VAC between the external terminals and the GR terminal for 1 minute at a
leakage current of 10 mA max.
Number of Circuits 32 (16 points/common, 2 circuits)
Internal Current Consumption 140 mA max.
Fuse None
External Power Supply 10.2 to 26.4 VDC, 30 mA min.
Weight 70 g max.
Circuit Configuration

The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
External connection and
terminal-device variable
diagram

When wiring, pay careful attention to the polarity of the external power supply. The
load may operate incorrectly if the polarity is reversed.
Be sure to wire both terminals 23 and 24 (COM0).
Be sure to wire both terminals 3 and 4 (COM1).
Be sure to wire both terminals 21 and 22 (+V).
Be sure to wire both terminals 1 and 2 (+V).
The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.

CJ1W-OD234 Transistor Output Unit (32 Points)

Name 32-point Transistor Output Unit with MIL Connector (Sinking Outputs)
Model Omron CJ1W-OD234
Rated Voltage 24 VDC
Operating Load Voltage Range 20.4 to 26.4 VDC
Maximum Load Current 0.5 A/point, 2 A/common, 4 A/Unit
Maximum Inrush Current 4.0 A/point, 10 ms max.
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 15 μs max.
OFF Response Time 80 μs max.
Insulation Resistance 20 MΩ between the external terminals and the GR terminal (100 VDC)
Dielectric Strength 1,000 VAC between the external terminals and the GR terminal for 1 minute at a
leakage current of 10 mA max.
Number of Circuits 32 (16 points/common, 2 circuits)
Internal Current Consumption 220 mA max.
Fuse None
External Power Supply 20.4 to 26.4 VDC, 110 mA min.
Weight 70 g max.
Circuit Configuration

The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
External connection and
terminal-device variable
diagram

When wiring, pay careful attention to the polarity of the external power supply. The
load may operate incorrectly if the polarity is reversed.
Be sure to wire both terminals 23 and 24 (COM0).
Be sure to wire both terminals 3 and 4 (COM1).
Be sure to wire both terminals 21 and 22 (+V).
Be sure to wire both terminals 1 and 2 (+V).
The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.

CJ1W-OD261 Transistor Output Unit (64 Points)

Name 64-point Transistor Output Unit with Fujitsu Connectors (Sinking Outputs)
Model Omron CJ1W-OD261
Rated Voltage 12 to 24 VDC
Operating Load
Voltage Range		 10.2 to 26.4 VDC
Maximum Load
Current		 0.3 A/point, 1.6 A/common, 6.4 A/Unit
Maximum Inrush
Current		 3.0 A/point, 10 ms max.
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response
Time		 0.5 ms max.
OFF Response
Time		 1.0 ms max.
Insulation
Resistance		 20 MΩ between the external terminals and the GR terminal (100 VDC)
Dielectric
Strength		 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of
10 mA max.
Number of
Circuits		 64 (16 points/common, 4 circuits)
Internal Current
Consumption		 5 VDC, 170 mA max.
Fuse None
External Power
Supply		 10.2 to 26.4 VDC, 50 mA min.
Weight 110 g max.
Accessories None
Circuit
Configuration

The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
External
connection
and terminal-
device variable
diagram		 CN1 CN2

When wiring, pay careful attention to the polarity
of the external power supply. The load may
operate incorrectly if the polarity is reversed.
Be sure to wire both terminals A9 and A19
(COM0) of CN1.
Be sure to wire both terminals B9 and B19
(COM1) of CN1.
Be sure to wire both terminals A10 and A20 (+V)
of CN1.
Be sure to wire both terminals B10 and B20 (+V)
of CN1.
The signal names of the terminals are the
device variable names.The device variable
names are the names that use “Jxx” as the
device name.

When wiring, pay careful attention to the polarity
of the external power supply. The load may
operate incorrectly if the polarity is reversed.
Be sure to wire both terminals A9 and A19
(COM2) of CN2.
Be sure to wire both terminals B9 and B19
(COM3) of CN2.
Be sure to wire both terminals A10 and A20 (+V)
of CN2.
Be sure to wire both terminals B10 and B20 (+V)
of CN2.
The signal names of the terminals are the
device variable names.The device variable
names are the names that use “Jxx” as the
device name.

CJ1W-OD263 Transistor Output Unit (64 Points)

Name 64-point Transistor Output Unit with MIL Connectors (Sinking Outputs)
Model Omron CJ1W-OD263
Rated Voltage 12 to 24 VDC
Operating Load
Voltage Range		 10.2 to 26.4 VDC
Maximum Load
Current		 0.3 A/point, 1.6 A/common, 6.4 A/Unit
Maximum Inrush
Current		 3.0 A/point, 10 ms max.
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response
Time		 0.5 ms max.
OFF Response
Time		 1.0 ms max.
Insulation
Resistance		 20 MΩ between the external terminals and the GR terminal (100 VDC)
Dielectric
Strength		 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of
10 mA max.
Number of
Circuits		 64 (16 points/common, 4 circuits)
Internal Current
Consumption		 170 mA max.
Fuse None
External Power
Supply		 10.2 to 26.4 VDC, 50 mA min.
Weight 110 g max.
Circuit
Configuration

The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
External
connection
and terminal-
device variable
diagram		 CN1 CN2

When wiring, pay careful attention to the polarity
of the external power supply. The load may
operate incorrectly if the polarity is reversed.
Be sure to wire both terminals 23 and 24 (COM0)
of CN1.
Be sure to wire both terminals 3 and 4 (COM1) of
CN1.
Be sure to wire both terminals 21 and 22 (+V) of
CN1.
Be sure to wire both terminals 1 and 2 (+V) of
CN1.
The signal names of the terminals are the
device variable names.The device variable
names are the names that use “Jxx” as the
device name.

When wiring, pay careful attention to the polarity
of the external power supply. The load may
operate incorrectly if the polarity is reversed.
Be sure to wire both terminals 23 and 24
(COM2) of CN2.
Be sure to wire both terminals 3 and 4 (COM3)
of CN2.
Be sure to wire both terminals 21 and 22 (+V) of
CN2.
Be sure to wire both terminals 1 and 2 (+V) of
CN2.
The signal names of the terminals are the
device variable names.The device variable
names are the names that use “Jxx” as the
device name.

CJ1W-OD202 Transistor Output Unit (8 Points)

Name 8-point Transistor Output Unit with Terminal Block (Sourcing Outputs)
Model Omron CJ1W-OD202
Rated Voltage 24 VDC
Operating Load Voltage
Range		 20.4 to 26.4 VDC
Maximum Load Current 2 A/point, 8 A/Unit
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 0.5 ms max.
OFF Response Time 1.0 ms max.
Load Short-circuit
Protection		 Detection current: 6 A min.
Automatic restart after error clearance.
Line Disconnection
Detection		 Detection current: 200 mA
Insulation Resistance 20 MΩ between the external terminals and the GR terminal (100 VDC)
Dielectric Strength 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage
current of 10 mA max.
Number of Circuits 8 (4 points/common, 2 circuits)
Internal Current
Consumption		 110 mA max.
Fuse None
External Power Supply 20.4 to 26.4 VDC, 50 mA min.
Weight 120 g max.
Circuit Configuration

When overcurrent or line disconnection is detected, the ERR indicator will light, and the
corresponding bit (two points per bit) in the Basic I/O Unit Information Area (A050 to
A069) will change to TRUE.
The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
External connection and
terminal-device variable
diagram

When wiring, pay careful attention to the polarity of the external power supply. The load
may operate incorrectly if the polarity is reversed.
The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
* Terminal numbers A0 to A8 and B0 to B8 are used in the external connection and terminal-device variable diagrams.
They are not printed on the Units.
Note: Although 16 I/O bits (1 word) are allocated, only 8 of these can be used for external I/O.

CJ1W-OD204 Transistor Output Unit (8 Points)

Name 8-point Transistor Output Unit with Terminal Block (Sourcing Outputs)
Model Omron CJ1W-OD204
Rated Voltage 24 VDC
Operating Load Voltage
Range		 20.4 to 26.4 VDC
Maximum Load Current 0.5 A/point, 4.0 A/Unit
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 0.5 ms max.
OFF Response Time 1.0 ms max.
Load Short-circuit
Protection		 Detection current: 0.7 to 2.5 A
Automatic restart after error clearance.
Insulation Resistance 20 MΩ between the external terminals and the GR terminal (100 VDC)
Dielectric Strength 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage
current of 10 mA max.
Number of Circuits 8 (8 points/common, 1 circuit)
Internal Current
Consumption		 5 VDC, 100 mA max.
Fuse None
External Power Supply 20.4 to 26.4 VDC, 40 mA min.
Weight 120 g max.
Circuit Configuration

When overcurrent is detected, the ERR indicator will light, and the corresponding bit in the
Basic I/O Unit Information Area (A050 to A069) will change to TRUE.
The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
External connection and
terminal-device variable
diagram

When wiring, pay careful attention to the polarity of the external power supply. The load
may operate incorrectly if the polarity is reversed.
The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
* Terminal numbers A0 to A8 and B0 to B8 are used in the external connection and terminal-device variable diagrams.
They are not printed on the Units.
Note: Although 16 I/O bits (1 word) are allocated, only 8 of these can be used for external I/O.

CJ1W-OD212 Transistor Output Unit (16 Points)

Name 16-point Transistor Output Unit with Terminal Block (Sourcing Outputs)
Model Omron CJ1W-OD212
Rated Voltage 24 VDC
Operating Load Voltage
Range		 20.4 to 26.4 VDC
Maximum Load Current 0.5 A/point, 5.0 A/Unit
Maximum Inrush Current 0.1 mA max.
Leakage Current 1.5 V max.
ON Response Time 0.5 ms max.
OFF Response Time 1.0 ms max.
Load Short-circuit
Protection		 Detection current: 0.7 to 2.5 A
Automatic restart after error clearance.
Insulation Resistance 20 MΩ between the external terminals and the GR terminal (100 VDC)
Dielectric Strength 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage
current of 10 mA max.
Number of Circuits 16 (16 points/common, 1 circuit)
Internal Current
Consumption		 5 VDC, 100 mA max.
External Power Supply 20.4 to 26.4 VDC, 40 mA min.
Weight 120 g max.
Circuit Configuration

When overcurrent is detected, the ERR indicator will light, and the corresponding bit in the
Basic I/O Unit Information Area (A050 to A069) will change to TRUE.
The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
External connection and
terminal-device variable
diagram

When wiring, pay careful attention to the polarity of the external power supply. The load may
operate incorrectly if the polarity is reversed.
The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
* Terminal numbers A0 to A8 and B0 to B8 are used in the external connection and terminal-device variable diagrams.
They are not printed on the Units.

CJ1W-OD232 Transistor Output Unit (32 Points)

Name 32-point Transistor Output Unit with MIL Connector (Sourcing Outputs)
Model Omron CJ1W-OD232
Rated Voltage 24 VDC
Operating Load Voltage
Range		 20.4 to 26.4 VDC
Maximum Load Current 0.5 A/point, 2.0 A/common, 4.0 A/Unit
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 0.5 ms max.
OFF Response Time 1.0 ms max.
Load Short-circuit
Protection		 Detection current: 0.7 to 2.5 A
Automatic restart after error clearance.
Insulation Resistance 20 MΩ between the external terminals and the GR terminal (100 VDC)
Dielectric Strength 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage
current of 10 mA max.
Number of Circuits 32 (16 points/common, 2 circuits)
Internal Current
Consumption		 5 VDC 150 mA max.
External Power Supply 20.4 to 26.4 VDC, 70 mA min.
Weight 80 g max.
Accessories None
Circuit Configuration

When overcurrent is detected, the ERR indicator will light, and the corresponding bit (bit
allocated for each common) in the Basic I/O Unit Information Area (A050 to A069) will
change to TRUE.
The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.
External connection and
terminal-device variable
diagram

When wiring, pay careful attention to the polarity of the external power supply. The load may
operate incorrectly if the polarity is reversed.
Be sure to wire both terminals 21 and 22 (COM0 (+V)).
Be sure to wire both terminals 1 and 2 (COM1 (+V)).
Be sure to wire both terminals 3 and 4 (0 V).
Be sure to wire both terminals 23 and 24 (0 V).
The signal names of the terminals are the device variable names.
The device variable names are the names that use “Jxx” as the device name.

CJ1W-OD262 Transistor Output Unit (64 Points)

Name 64-point Transistor Output Unit with MIL Connectors (Sourcing Outputs)
Model Omron CJ1W-OD262
Rated Voltage 12 to 24 VDC
Operating Load
Voltage Range		 10.2 to 26.4 VDC
Maximum Load
Current		 0.3 A/point, 1.6 A/common, 6.4 A/Unit
Maximum Inrush
Current		 3.0 A/point, 10 ms max.
Leakage Current 0.1 mA max.
Residual Voltage 1.5 V max.
ON Response
Time		 0.5 ms max.
OFF Response
Time		 1.0 ms max.
Insulation
Resistance		 20 MΩ between the external terminals and the GR terminal (100 VDC)
Dielectric
Strength		 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current
of 10 mA max.
Number of
Circuits		 64 (16 points/common, 4 circuits)
Internal Current
Consumption		 170 mA max. (5 VDC)
Fuse None
External Power
Supply		 10.2 to 26.4 VDC, 50 mA min.
Weight 110 g max.
Accessories None

Trả lời

Email của bạn sẽ không được hiển thị công khai. Các trường bắt buộc được đánh dấu *

090 423 1199 Zalo: 090 423 1199 Nhắn tin qua Facebook SMS: 090 423 1199
